Version vom 1. Juni 2017, 14:42 Uhr
Zugriff
- Zugriff über Telnet auf Port 23
- telnet <IP oder FQDN>

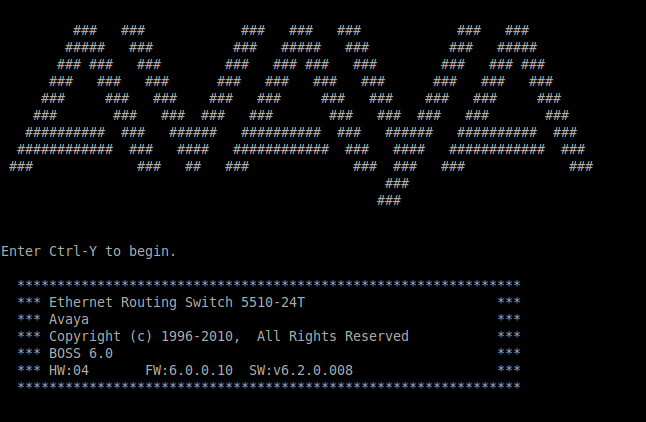

Konfigurations-Menü

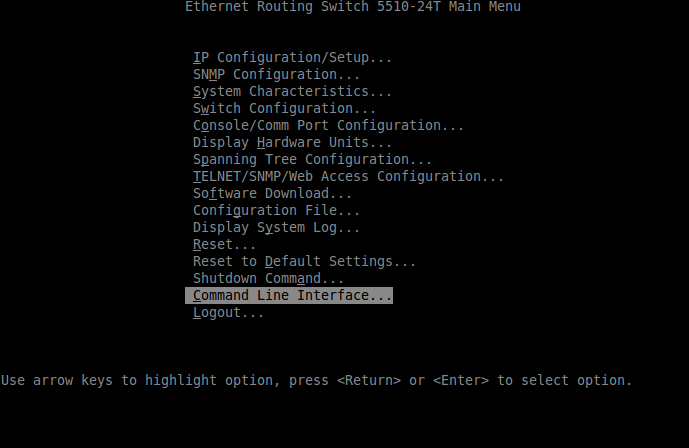

Zugriff auf die Konsole
enable
- enable
running-config
- show running-config
5510-24T#show running-config ! Embedded ASCII Configuration Generator Script ! Model = Ethernet Routing Switch 5510-24T ! Software version = v6.2.0.008 ! ! Displaying only parameters different to default !================================================ enable configure terminal ... ... ...
interfaces
- show interfaces
Status Auto Flow Port Trunk Admin Oper Link LinkTrap Negotiation Speed Duplex Control ---- ----- ------- ---- ---- -------- ----------- -------- ------ ------- 1 Enable Down Down Enabled Enabled 2 Enable Down Down Enabled Enabled 3 Enable Down Down Enabled Enabled 4 Enable Down Down Enabled Enabled 5 Enable Down Down Enabled Enabled ... ... ...
