Elasticsearch/logstash/kibana

Voraussetzung

• Installieren von Kali Purple

Update

• apt update && apt upgrade

Checken wie der Hostname ist

• hostname -f

purple.xinux.org

Installation von elasticsearch

• apt install elasticsearch -y

Wir notieren das Passwort

The generated password for the elastic built-in superuser is : tMF3iXWcd*Wb-RMbE9+F

Installation von kibana

• apt install kibana -y

kibana keystore anlegen

• /usr/share/kibana/bin/kibana-encryption-keys generate -q

kibana ports und ip anpassen

• echo "server.port: 5601" >> /etc/kibana/kibana.yml
• echo "server.host: 0.0.0.0" >> /etc/kibana/kibana.yml

kibana und elastic starten und systemstart aktivieren

• sudo systemctl enable elasticsearch kibana --now

Enroll Key generieren

• /usr/share/elasticsearch/bin/elasticsearch-create-enrollment-token -s kibana

eyJ2ZXIiOiI4LjEzLjMiLCJhZHIiOlsiMTAuODEuMjU1LjE1MTo5MjAwIl0sImZnciI6IjY2ZTQzZmM5MGZiMjQwNWU3ZDk1OGY5NjQ5ODkxOWQwNjc1NTU1M2QwNmZhYWRjNmE1MGUxMWM5YTIxZDZkZDEiLCJrZXkiOiJReW1PVW84QkhEa2RqdFJ3TzZaWDptTzNJcDU0Q1RYMmhpdGptUDlLVTlnIn0=

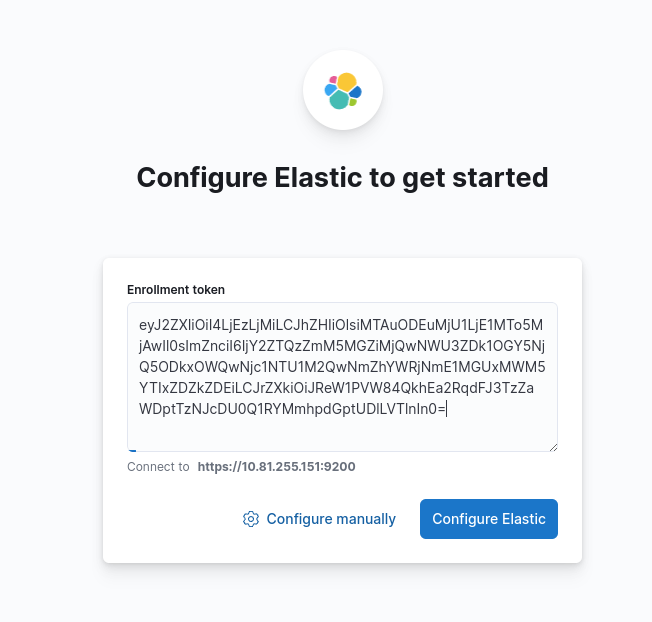

kibana öffnen und Key reinpasten

• http://purple.xinux.org:5601

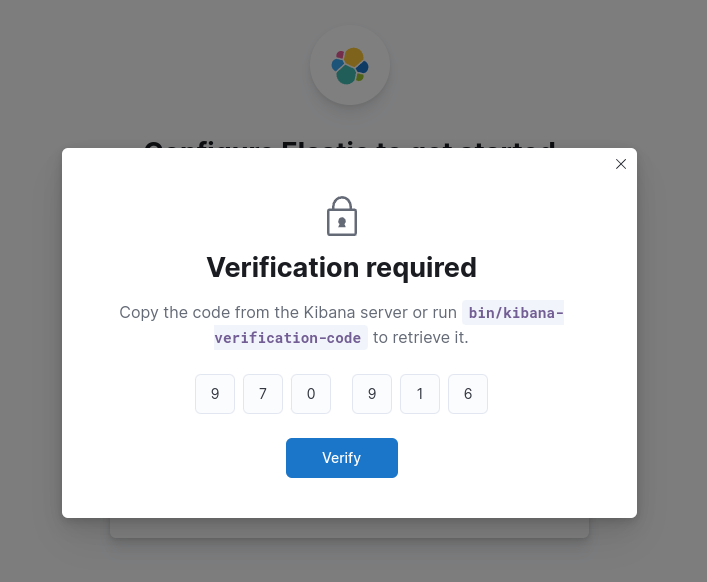

Verificationcode generieren

• /usr/share/kibana/bin/kibana-verification-code

Your verification code is:  970 916

Code rein kopieren

Aktivieren von HTTPS für Kibana

• /usr/share/elasticsearch/bin/elasticsearch-certutil ca
• /usr/share/elasticsearch/bin/elasticsearch-certutil cert --ca elastic-stack-ca.p12 --dns purple.xinux.org --out kibana-server.p12
• openssl pkcs12 -in /usr/share/elasticsearch/elastic-stack-ca.p12 -clcerts -nokeys -out /etc/kibana/kibana-server_ca.crt
• openssl pkcs12 -in /usr/share/elasticsearch/kibana-server.p12 -out /etc/kibana/kibana-server.crt -clcerts -nokeys
• openssl pkcs12 -in /usr/share/elasticsearch/kibana-server.p12 -out /etc/kibana/kibana-server.key -nocerts -nodes
• chown root:kibana /etc/kibana/kibana-server*
• chmod 660 /etc/kibana/kibana-server*
• echo "server.ssl.enabled: true" | tee -a /etc/kibana/kibana.yml
• echo "server.ssl.certificate: /etc/kibana/kibana-server.crt" | tee -a /etc/kibana/kibana.yml
• echo "server.ssl.key: /etc/kibana/kibana-server.key" | tee -a /etc/kibana/kibana.yml
• echo "server.publicBaseUrl: \"https://purple.xinux.org:5601\"" | tee -a /etc/kibana/kibana.yml
• /usr/share/kibana/bin/kibana-encryption-keys generate

Neustart von kibana

• systemctl restart kibana

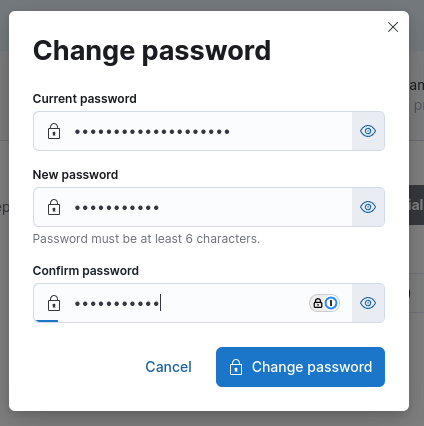

Password ändern

• https://purple.xinux.org:5601/

logstash installieren

• apt install logstash

Clonen von pfelf

• cd /root
• git clone https://github.com/pfelk/pfelk

Logstash Filter Dateien

• #Konfigurationsordner anlegen
• mkdir -p /etc/pfelk/{conf.d,config,logs,databases,patterns,scripts,templates}
• #Konfigurationsvorlagen in die entsprechenden Verzeichnisse kopieren
• cp pfelk/etc/pfelk/conf.d/01-inputs.pfelk -P /etc/pfelk/conf.d/
• cp pfelk/etc/pfelk/conf.d/02-firewall.pfelk -P /etc/pfelk/conf.d/
• cp pfelk/etc/pfelk/conf.d/05-apps.pfelk -P /etc/pfelk/conf.d/
• cp pfelk/etc/pfelk/conf.d/30-geoip.pfelk -P /etc/pfelk/conf.d/
• cp pfelk/etc/pfelk/conf.d/49-cleanup.pfelk -P /etc/pfelk/conf.d/
• cp pfelk/etc/pfelk/conf.d/50-outputs.pfelk -P /etc/pfelk/conf.d/
• cp pfelk/etc/pfelk/conf.d/20-interfaces.pfelk -P /etc/pfelk/conf.d/
• cp pfelk/etc/pfelk/conf.d/35-rules-desc.pfelk -P /etc/pfelk/conf.d/
• cp pfelk/etc/pfelk/conf.d/36-ports-desc.pfelk -P /etc/pfelk/conf.d/
• cp pfelk/etc/pfelk/conf.d/37-enhanced_user_agent.pfelk -P /etc/pfelk/conf.d/
• cp pfelk/etc/pfelk/conf.d/38-enhanced_url.pfelk -P /etc/pfelk/conf.d/
• cp pfelk/etc/pfelk/conf.d/45-enhanced_private.pfelk -P /etc/pfelk/conf.d/
• cp pfelk/etc/pfelk/patterns/pfelk.grok -P /etc/pfelk/patterns/
• cp pfelk/etc/pfelk/patterns/openvpn.grok -P /etc/pfelk/patterns/
• cp pfelk/etc/pfelk/databases/private-hostnames.csv -P /etc/pfelk/databases/
• cp pfelk/etc/pfelk/databases/rule-names.csv -P /etc/pfelk/databases/
• cp pfelk/etc/pfelk/databases/service-names-port-numbers.csv -P /etc/pfelk/databases/

Logstash Konfiguration

• cp pfelk/etc/pfelk/config/pipelines.yml /etc/logstash/
• mkdir -p /etc/pfelk/logs
• cp pfelk/etc/pfelk/scripts/error-data.sh /etc/pfelk/scripts/
• chmod +x /etc/pfelk/scripts/error-data.sh
• mkdir /etc/logstash/config
• cp -r /etc/elasticsearch/certs /etc/logstash/config/
• chown -R logstash:logstash /etc/logstash

Password eintragen in logstash

• sed -ie "s/changeme/<dein-passwort>/" /etc/pfelk/conf.d/50-outputs.pfelk

logstash starten

• enable logstash.service --now

Created symlink /etc/systemd/system/multi-user.target.wants/logstash.service → /usr/lib/systemd/system/logstash.service.

logstash journal checken

• journalctl -fu logstash
